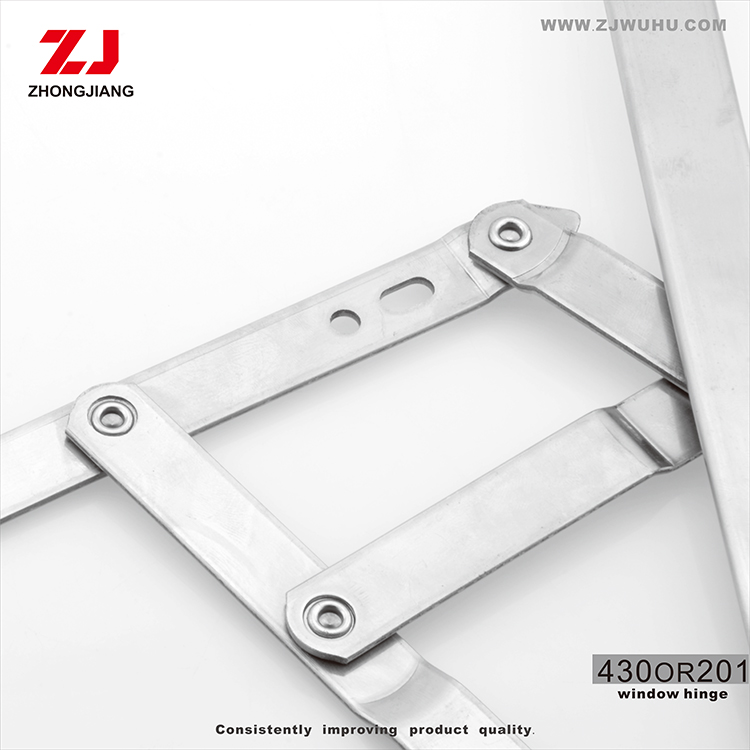

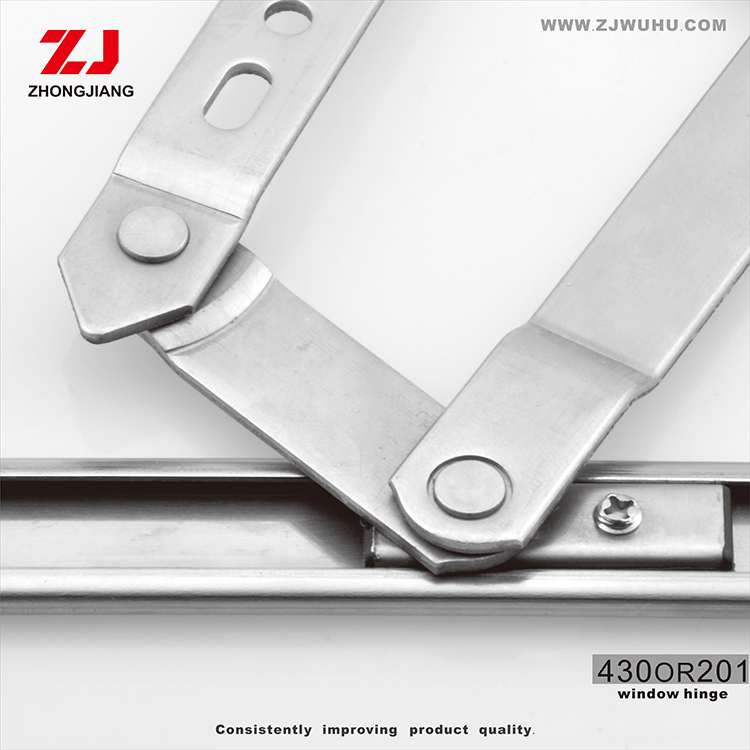

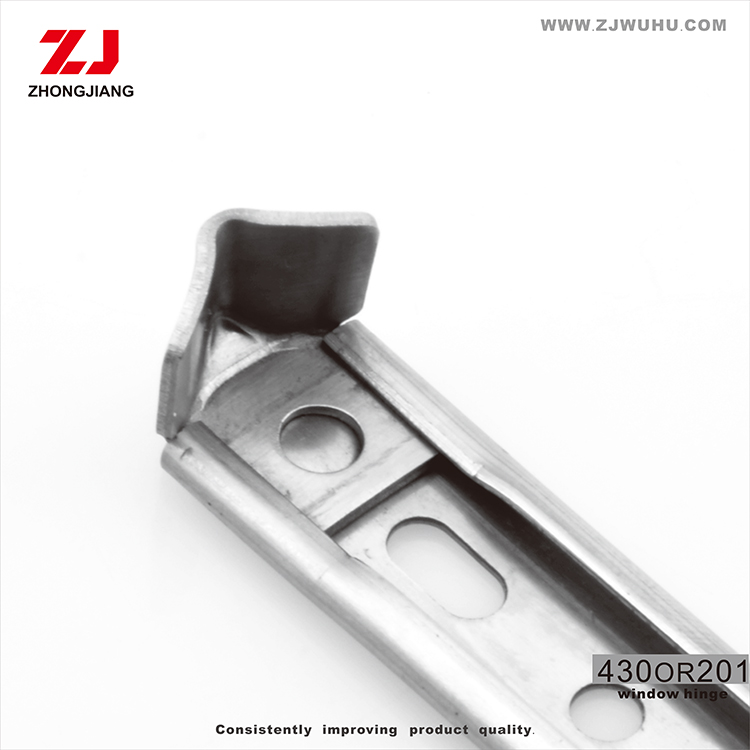

ZJ-W19
※(304)is made of high quality stainliss steel manufacturing;
※In JG/T 127-2007 standard for building doors and windows Hardware-friction;
※Can adjust opening Angle section(lock activity)fixed block;
※The ministry of construction committee recommended products for doors and windows fittings;
※This product is a professional stamping made heavy industry automation equipment,precision, beautiful,strong and durable;
※Fifty thousand times by authorities after test can still be normal operation,ensure continuing durable use;
| Installation dimensions | Alumminium window specification | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| linkage quantity | linkage quantity(mm) | Specifications | A | B | C | D | E | F | G | H | I | J | K | Window highest(mm) | Window widest(mm) | Window weight(kg) | Opening angle(±2°) |
| four-bar linkage | ≥2.0/2.5 | 8" | 38.8 | - | 171.3 | 154.3 | 164.3 | 24 | - | 148.5 | - | 193 | 201 | 1200 | 450 | 11 | 65° |
| ≥2.0/2.5 | 10" | 38.8 | - | 171.3 | 182.8 | 192.8 | 33 | - | 207.5 | - | 245 | 253 | 1500 | 500 | 15 | 65° | |
| ≥2.0/2.5 | 12" | 35 | 47.5 | 174.3 | 188.1 | 198.4 | 20 | 36.5 | 192 | 253 | 289 | 297 | 1500 | 550 | 18 | 90° | |
| ≥2.0/2.5 | 14" | 38.8 | 52.3 | 216.3 | 227.8 | 237.8 | 28 | 39 | 248.3 | 276 | 332.6 | 341 | 1500 | 600 | 18 | 90° | |
| ≥2.0/2.5 | 16" | 38.8 | 52.3 | 253.8 | 243.8 | 253.8 | 32 | - | 274 | 303 | 289 | 397 | 1500 | 650 | 21 | 70° | |
